How to Power a 220V Laser Welder in a US Garage: 110V vs. 220V Explained
| 17, Mar, 26
If you're planning to use a laser welder in a US garage, one of the first questions is: Do I need 110V or 220V?
In the United States, standard household outlets typically provide around 120V, while higher-power equipment often uses 240V circuits. Laser welders with higher electrical power requirements may need a dedicated 220–240V circuit.
1. 110V vs. 220V: What's the Difference?
The biggest difference is the amount of current required to produce the same amount of power.
For example, if a machine requires approximately 4,800W of electrical power:
- At 120V: about 40A
- At 240V: about 20A
This is why 220–240V is often more practical for powerful equipment such as laser welders, air compressors, and other workshop machines.
However, don't assume that a 1300W laser welder only consumes 1300W of electricity. The laser's wattage refers to laser output, while the machine's total electrical consumption also includes the laser power supply, chiller, cooling system, controls, and other components.
Always check the manufacturer's input voltage, maximum input power, and rated current before connecting the machine.
2. Can You Run a 220V Laser Welder in a US Garage?
Yes, in many cases.
Most US homes use a 120/240V electrical system, so even if your garage currently only has standard 120V outlets, your home's electrical service may still support a properly installed 240V circuit.
For a high-power laser welder, you may need:
- A dedicated 220–240V circuit
- The correct circuit breaker
- The correct receptacle and plug
- Proper equipment grounding
- Wiring sized for the machine's electrical requirements

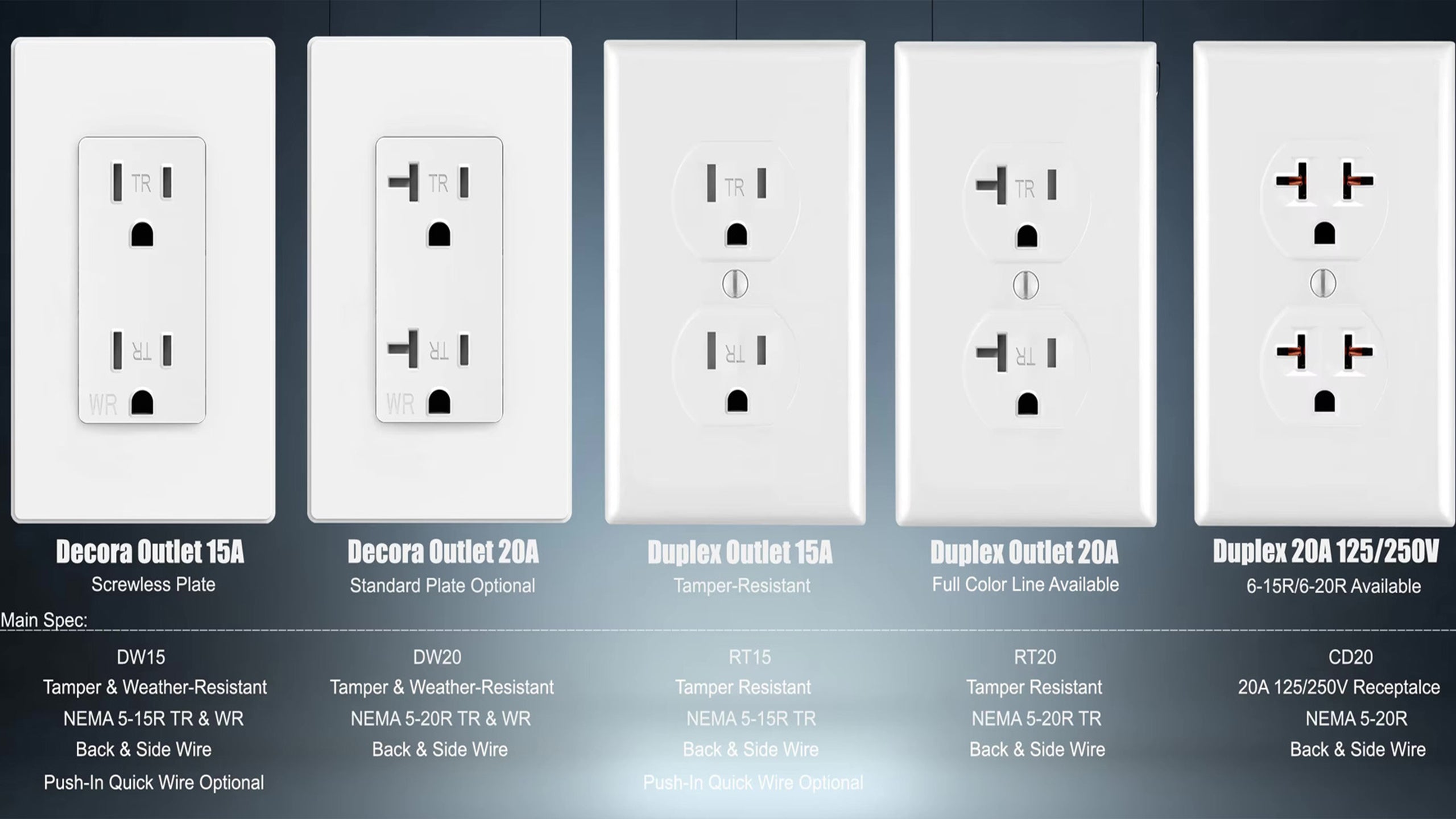

The exact outlet depends on the machine. Different equipment may use different NEMA configurations, so don't choose an outlet simply because it is labeled “220V.”
If your laser welder requires 240V, do not simply replace the plug or use an adapter to connect it to a 120V outlet. The electrical circuit must be compatible with the machine.
3. What Should You Check Before Buying a Laser Welder?
Before purchasing a laser welder for your garage, check these four specifications:
1. Input Voltage
Make sure the machine supports the voltage available in your workshop, such as 120V, 220–240V, or a wider input range.
2. Maximum Input Power
Don't look only at the laser output wattage. Check the machine's total electrical input power.
3. Rated Input Current
This tells you how much current the machine may require and helps determine the appropriate circuit.
4. Plug and Grounding Requirements
Make sure the plug, receptacle, circuit, and grounding system are compatible with the machine and local electrical requirements.
For example, a 1300W laser welder may have significantly higher total electrical consumption than 1300W. If the machine requires around 4,800W, a 240V supply would require approximately 20A, while the same power at 120V would require approximately 40A.
Final Thoughts
For most high-power laser welders, 220–240V can be a more practical choice for a US garage because it allows the machine to operate at lower current for the same power.
Before installation, always check the manufacturer's specifications and have a qualified electrician evaluate the circuit, breaker, wiring, receptacle, and grounding requirements.
The key is simple:
Don't choose the electrical circuit based only on the laser's wattage. Check the machine's actual input voltage and electrical power requirements.
